Brazed plate heat exchanger
Copper type plate heat exchanger
Copper brazing plate heat exchanger product features
* Compact, easy to install
* Use thin sheet
* High heat transfer coefficient
* Less stagnation
Light weight
* Only 20-30% of shell and tube heat exchangers
Less water consumption
* Brazed plate heat exchanger heat transfer efficiency, so that it is only in the same cooling conditions equivalent to shell and tube heat exchanger 1/3 of the cooling water flow.
Durable
* Can withstand high temperature (200 ° C) and high pressure (30bar)
* Eliminates corrosion problems
* Removed the gasket
Low coefficient of dirt
* High turbulence reduces the dirt coefficient, thereby reducing the number of cleaning.

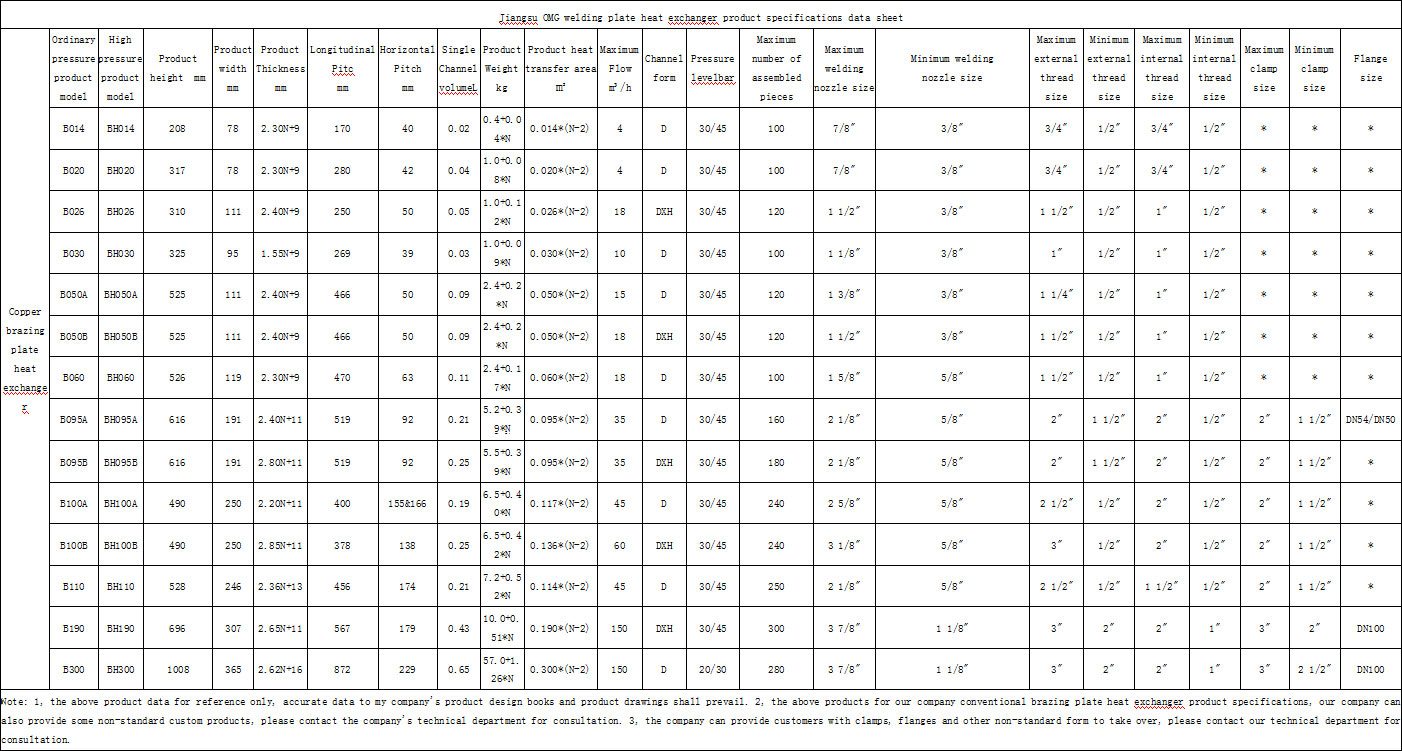

Jiangsu OMG welding plate heat exchanger product specifications data sheet
* Compact, easy to install
* Use thin sheet
* High heat transfer coefficient
* Less stagnation
Light weight
* Only 20-30% of shell and tube heat exchangers
Less water consumption
* Brazed plate heat exchanger heat transfer efficiency, so that it is only in the same cooling conditions equivalent to shell and tube heat exchanger 1/3 of the cooling water flow.
Durable
* Can withstand high temperature (200 ° C) and high pressure (30bar)
* Eliminates corrosion problems
* Removed the gasket
Low coefficient of dirt
* High turbulence reduces the dirt coefficient, thereby reducing the number of cleaning.
| Copper brazing | |
| Plate material | AISI304/316L |
| Interface material | AISI304 |
| Brazing material | copper |
| Maximum design temperature | 200°C |
| Minimum design temperature | -160°C |
| Maximum design pressure | 30/45 bar |
Jiangsu OMG welding plate heat exchanger product specifications data sheet
